Daim Ntawv Qhia Ncig Saib Xyuas Kev Siv Ua Lag Luam
Ib -rau-Ntau Pairing
Anti-Kev cuam tshuam teeb liab
Lub neej roj teeb ntev
Portable & Lub teeb yuag
Ib qho yooj yim -Click Operation
Hefei Humantek Co., Ltd. yog ib qho ntawm cov tuam txhab ua lag luam thiab cov chaw muag khoom ntawm cov lus qhia ncig xyuas kev lag luam siv hauv Suav teb. Nrog ib pab neeg tsim khoom, peb muaj peev xwm ua tau raws li qhov xav tau ntawm feem ntau ntawm peb cov neeg siv khoom. Zoo siab txais tos mus yuav cov khoom siv zoo tshaj plaws rau kev lag luam siv los ntawm peb lub hoobkas.
Tsim los rau cov xwm txheej ntawm kev lag luam xws li kev ncig xyuas lub Hoobkas, kev tshaj tawm cov khoom lag luam thiab VIP txais tos, qhov kev tshaj lij kev xa xov hluav taws xob xa tawm kom ruaj khov, tiag - lub sij hawm lub suab tawm tswv yim nrog muaj zog tiv thaiv - cuam tshuam kev ua tau zoo thiab tsim qauv tsim. R8 ncig saib kev qhia system rau kev lag luam siv zoo kawg nkaus ua tau raws li qhov siab - kev xav tau kev sib txuas lus zoo ntawm ntau lub lag luam ntawm - thaj chaw piav qhia thiab kev txais tos, thiab tau xa tawm mus rau kaum ob lub teb chaws nrog kev ntseeg siab tau lees paub los ntawm cov neeg siv khoom thoob ntiaj teb.
Khoom Parameters
Technical parameters ntawm R8 transmitter
|
Tus neeg nqa khoom zaus |
865MHz-880MHz |
|
Tus naj npawb ntawm cov channel |
100 CH (Adjustable 100 CH) |
|
Kev sib txuas lus nrug |
150m |
|
Lus |
8 hom lus, customizable |
|
Loj |
75 * 70 * 18 hli |
|
Modulation hom: |
GPSK |
|
Lub sijhawm ua haujlwm |
7-10 teev (hli) |
Technical parameters ntawm R8 pob ntseg-mounted receiver
|
Tus neeg nqa khoom zaus |
865MHz-880MHz |
|
Kev sib txuas lus nrug |
Tsawg dua los yog sib npaug li 200m |
|
Lub sijhawm them nyiaj |
2.5h |
|
Qhov hnyav |
17.3g |
|
Loj |
73 (L) * 48mm (W) * 11 hli (H) |
|
Lub sijhawm ua haujlwm |
7-10 (HAU) |
Khoom Feature
Muaj zog tiv thaiv - cuam tshuam
Cov kev qhia ncig saib rau kev lag luam siv tau txais qhov siab tshaj 2.4GHz siab-frequency band + U-band dual-channel wireless transmission technology, uas zoo zam tsis txhob teeb liab congestion thiab electromagnetic cuam tshuam los ntawm complex ib puag ncig.
01
Kev ua haujlwm yooj yim
Cov kev qhia ncig saib rau kev lag luam siv nta ib qho kev nkag siab zoo - lub zog tseem ceeb - ntawm & tsis siv neeg zaus sib piv tsim. Lub transmitter thiab receiver yuav ua ke nrog ib leeg instantly powered on, tsis muaj teeb meem nyuaj los yog phau ntawv debugging.
02
Ultra -ntev standby
Ua tau - nyob rau hauv siab - kev ua tau zoo rechargeable lithium roj teeb nrog lub peev xwm loj thiab siv hluav taws xob tsawg. Nws txhawb nqa tag nrho -hnub txuas ntxiv siv rau kev txais tos kev lag luam, kev ncig xyuas lub Hoobkas, kev mus ntsib pab pawg thiab kev piav qhia ua lag luam. Lub roj teeb lub neej ntev tshem tawm cov kev them nyiaj ntau zaus, ua kom muaj kev ruaj ntseg ua haujlwm tau zoo thoob plaws hnub tsis muaj kev cuam tshuam.
03
Portable tsim
Lub teeb yuag heev thiab ergonomic qauv: tus txais khoom hnyav tsuas yog 16g, lub teeb txaus nqa tau ntev ntev yam tsis muaj nkees; lub transmitter yog compact thiab ke, yooj yim los tuav los yog qhov chaw. Qhov loj me me ua rau khaws cia, nqa thiab loj- teev kev faib tawm hauv cov lag luam yooj yim dua, nqa tau zoo heev rau kev siv txhua hnub.
04
Daim ntawv thov Scenario
Factory/industrial park ntawm -site ncig saib thiab piav qhia kab ntau lawm
Kev tshaj tawm cov khoom lag luam, siab -kawg exhibition thiab cov khoom lag luam tshiab
VIP txais tos cov neeg siv khoom, kev tshuaj xyuas tsoomfwv thiab kev piav qhia kev lag luam
Kev cob qhia sab hauv thiab pab pawg sib tham hauv cov lag luam loj
Hla-txoj kev lag luam ciam teb sib pauv thiab ntau- lus txhais ib txhij

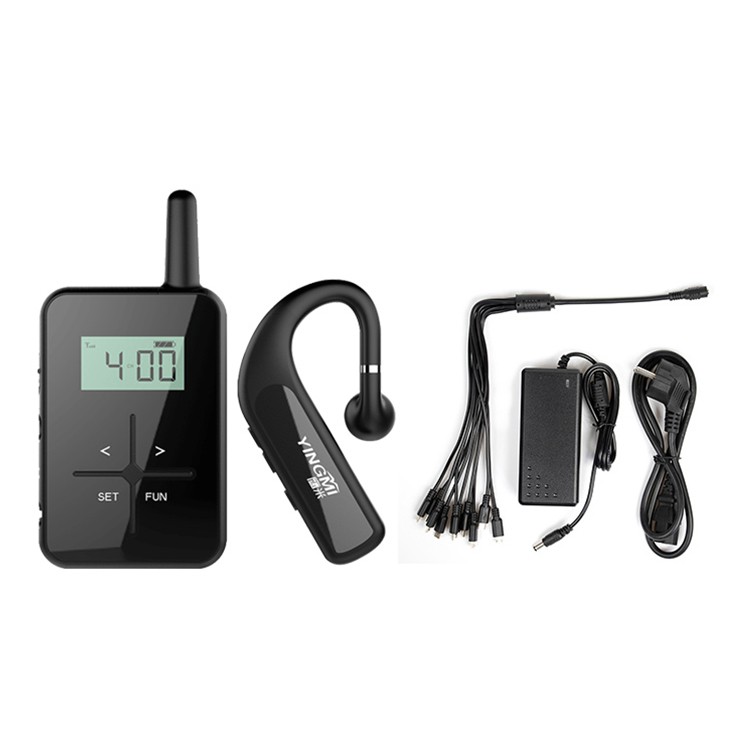

Khoom Paub meej

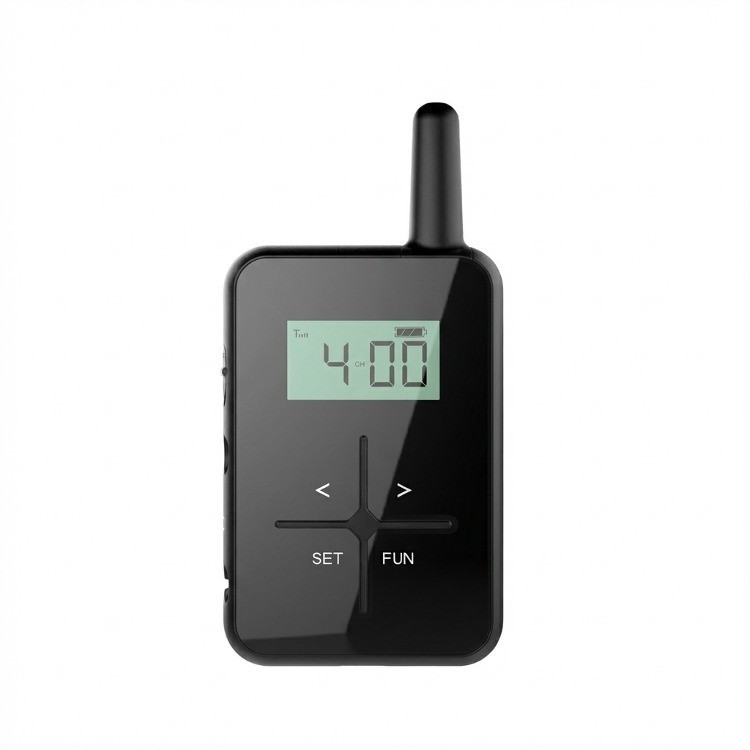

Transmitter:Tag nrho - ua haujlwm LCD zaub, qhia channel, ntim, roj teeb thiab teeb liab zog; nruab nrog plug-in/headset microphone rau kev siv tau yooj yim

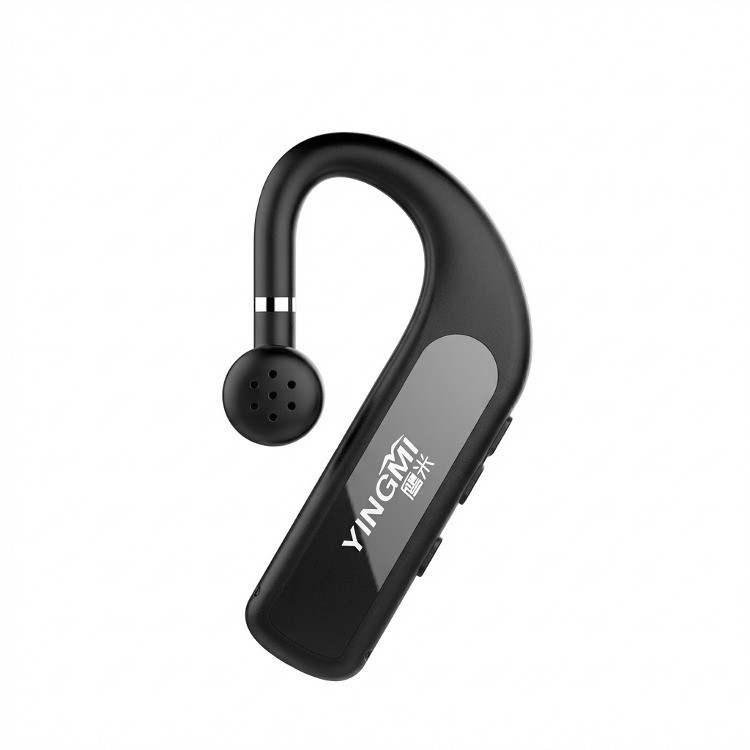

Tus txais:Tsis yog-hauv- pob ntseg nyiam hnav tsim, ywj siab hloov kho, me me thiab lub teeb rau ntev -lub sij hawm hnav
Charging accessories:Kev tswj hwm kev them nyiaj ntse nrog trickle ua ntej- hom kev them nyiaj, txuas ntxiv roj teeb lub neej; tag nrho -aluminium cia lub thawv nrog silicone thiab daim txhuam cev, zoo shockproof thiab tiv thaiv - kev sib tsoo rau kev lag luam niaj hnub cia thiab kev thauj mus los
Zuag qhia tag nrho tsim:Integrated circuit processing, khoom plhaub khoom, yoog mus rau ntau yam kev lag luam nyuaj ntawm - qhov chaw ib puag ncig
FAQ
Q1: Yuav ua li cas txuas lub transmitter thiab receiver?
A1: Nias lub SET khawm kom lub hwj chim, lub cuab yeej yuav cia li tshawb nrhiav thiab txuas lub teeb liab.
Q2: Dab tsi yog qhov max siv ntau yam rau lub wireless ncig xyuas kev qhia rau kev lag luam siv?
A2: Tus neeg txais txiaj ntsig qhov kev ncua deb yog mus txog 200m ntawm lub transmitter.
Q3: Cov zaus tuaj yeem hloov kho rau kev lag luam siv?
A3: Yog lawm, tus neeg nqa khoom zaus tuaj yeem hloov kho dua li ntawm 865MHz-880MHz.
Q4: Lub roj teeb lub neej ntev npaum li cas rau tag nrho -hnub siv?
A4: Transmitter ua haujlwm Ntau dua lossis sib npaug li 15h, tus txais ua haujlwm ntau dua lossis sib npaug li 8h tom qab them tag nrho.
Q5: Puas yog kev txhais lus ntau- txhawb nqa?
A5: 8 hom lus muaj los ntawm lub neej ntawd, thiab ntau dua tuaj yeem hloov kho.
